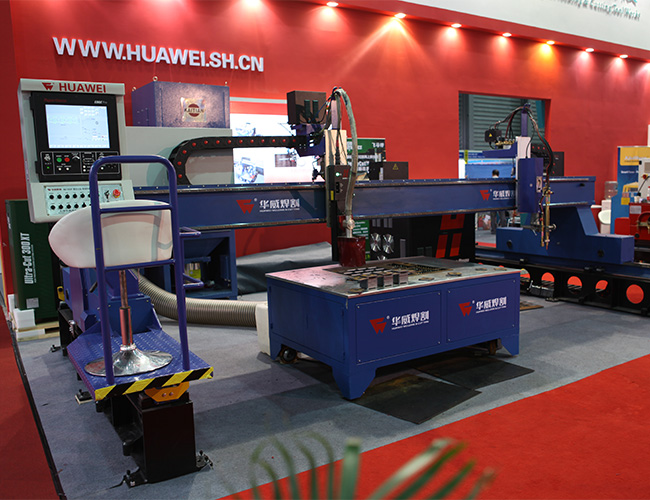

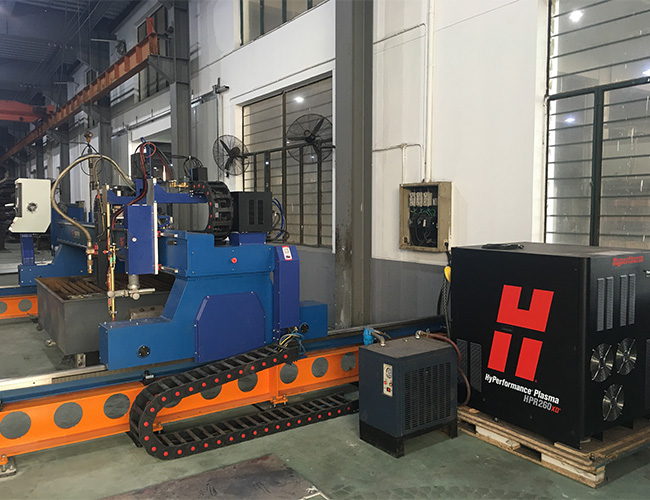

本切割機是一種數字程序控制的現代化切割設備，除切割操作的自動化外，它還具有切割精度高、材料利用率高、生產效率高等特點。隨著機械電子技術和計算機技術的進步，數控切割機以其良好的人機對話操作界面、強大的輔助支持功能以及相對很低的設備投資，正被越來越多的企業所重視，在生產中得到越來越廣泛的應用。

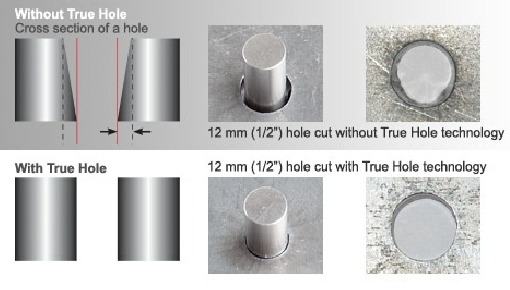

這種數控切割機的配置是專為小孔設計。基于對海寶等離子切割技術我們的數控切割機可以切割的直徑從6至25mm的厚度。
Basic data
| Descriptions | Specification | |
| Track Width (mm) | 4000 | |
| Rail length (mm) | 12000 | |
| Effective Cutting Area(mm) | 3000x10000 | |
| Drive | Y axis Panasonic AC servo motor *2set | |
| X axis Panasonic AC servo motor *1set | ||
| Max traveling speed(mm/min) | 12000 | |
| Flame Cutting Torch Number | 1Set | |
| Flame Cutting Thickness(mm) | 6-150 | |
| Flame Torch Height Sensor | Capacitance Auto torch Height sensor* 1set | |
| Flame Cutting Speed(mm/min) | 50-800 | |
| Controller | Micro edge pro | |
| Nest Software |
SMARTNEST |
Accuracy
| Positioning Accuracy | ±0.5mm/10000mm |
| Repeatability | ≤±0.1mm |
| Speed setting error | ≤±5% |

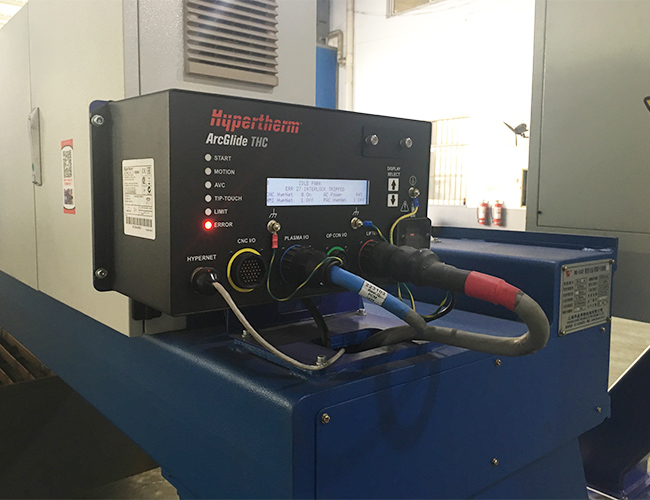

| THC accuracy | ≤±0.5mm |
| Length of a side Error(mm) | ±0.5mm |
| Base Point Return Error | ±0.4mm |
| Intersection point Error | ±0.5mm |
| Lineation forward-reverse Error |
±0.2mm |
Working Conditions
|
Power Supply Temperature Humidity Surroundings |
Machine : 220v±10%;50Hz~60Hz(Customized) |
| Oxy-fuel cutting gas type/Quality |
Oxygen:0.5-0.8MPa |

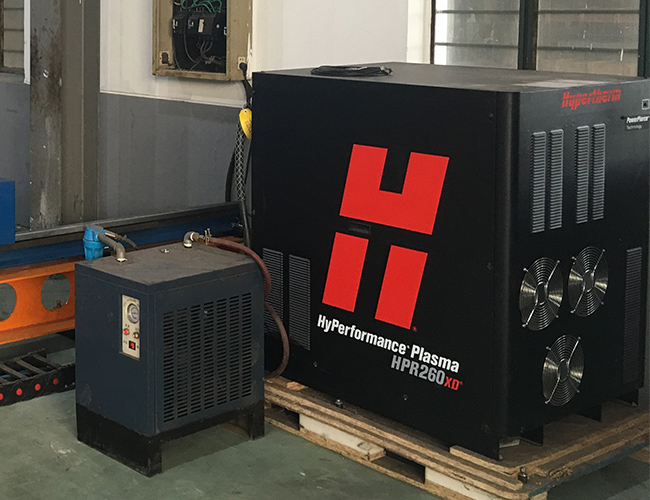

| Plasma Cutting Gas type/Quality | Basically gas: Dry and oil free compressed air Pressure: 8.3kg/cm2 Flow:0.9 M3/Min The rest shield and plasma gas type and quality please refer to Plasma source Manuel |
